TX25H Overview

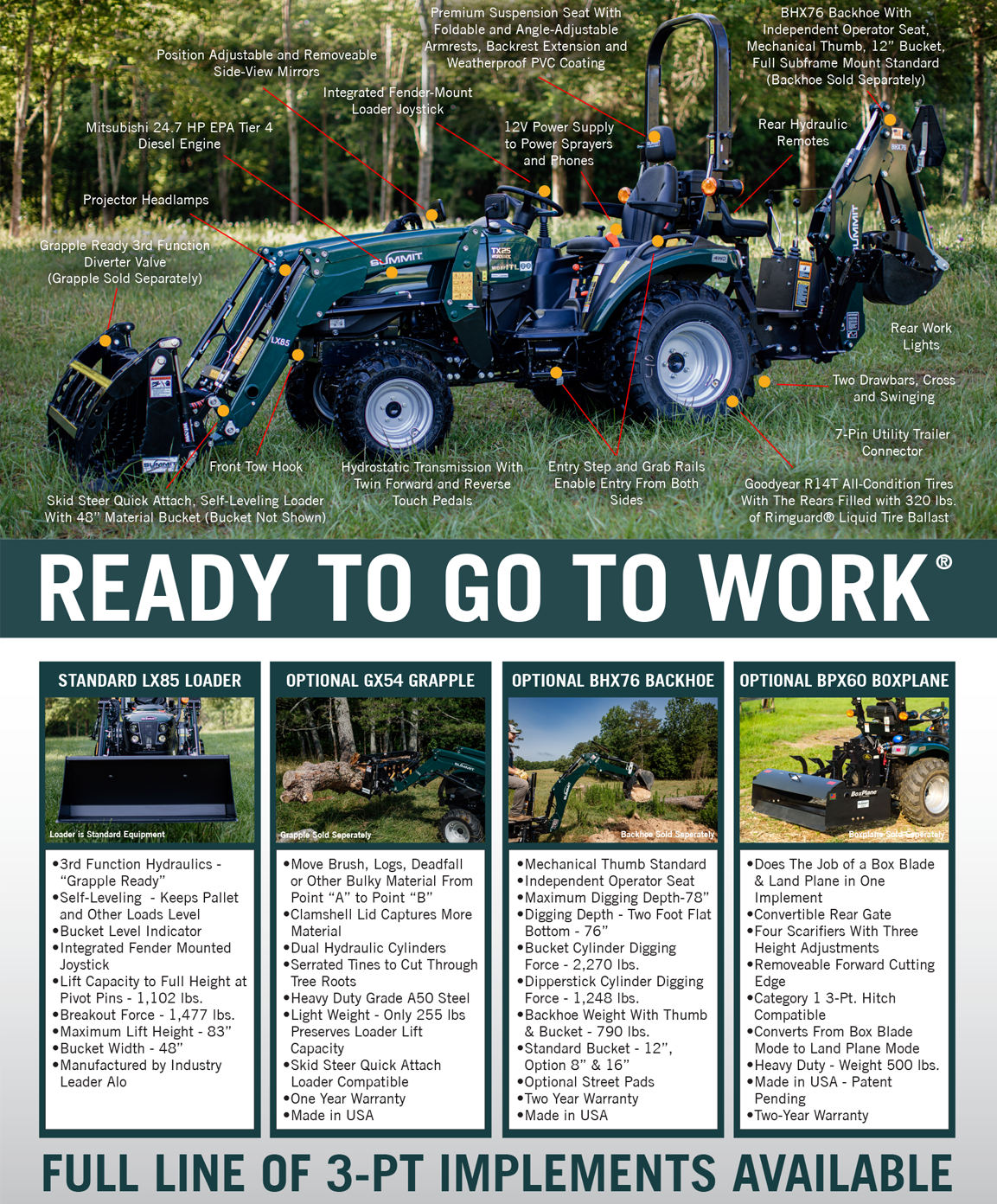

At Summit Tractors, we believe that when you purchase a tractor, it should come ready to operate any attachment or implement required to do the job. Standard features include rear hydraulic remotes to power 3-pt implements that require hydraulics, a 3rd function diverter valve integrated with the loader joystick to enable use of a grapple or hydraulically controlled front blade. A self-leveling loader that keeps the load level without the need for constant curling adjustments. Additional standard features include two types of rear drawbars, a front tow hook, rear work light, RimGuard™ Liquid Tire Ballast in the rear tires, side-view mirrors and a premium, operator weight adjustable suspension seat. See below for a complete list of features and specifications.

No other tractor brand in its HP class has more standard features than a Summit TX25H.



BHX SERIES BACKHOES

Summit BHX76 Backhoe

Made in USA
Independent Operator Seat Standard
Mechanical Thumb Standard
12” Bucket Standard,
Optional 8” and 16”
Full Subframe Mount
Bucket Cylinder Digging Force 2,270 lbs.
Maximum Digging Depth 76”
(Two Foot Flat Bottom)
Optional Street Pads
Two Year Warranty

SUMMIT BHX76 BACKHOE SPECS


Model BHX76
Independent Operator Seat Standard
Mechanical Thumb Standard
Tractor Attachment Type Full Subframe Mount
Bucket Sizes 12" Standard, Optional 8", 16"
Street Pads Optional
Maximum Digging Depth 78"
Digging Depth (Two Foot Flat Bottom) 76"
Swing Arc 148 Degrees
Loading Height (Bucket at 60 Degrees) 64"
Reach From Center Line of Swing Point 109"
Transport Height (Maximum) 72"
Bucket Rotation 180 Degrees
Loading Reach (Bucket at 60 Degrees) 35"
Transport Overhang 37"
Undercut 15"
Stabilizer Spread, Down Position 74"
Stabilizer Spread, Up Position 59"
Bucket Cylinder Digging Force 2270 lbs.
Dipperstick Cylinder Digging Force 1248 lbs.
Hydraulic Volume Requirements 2 to 4 GPM
Hydraulic Pressure Requirements 2100 PSI
Backhoe Weight With Thumb and Bucket 790 lbs.
Overall Operating Height - Fully Raised 112"



BHX76 BACKHOE


The Summit BHX76 features an independent operator seat, eliminating the need to rotate the seat with each change from tractor to backhoe. The BHX76 is a full subframe mount Backhoe. The BHX76 Backhoe retails under $8,000. Installation additional cost. See stores for details.
