Made in USA
Independent Operator Seat Standard
Mechanical Thumb Standard
12” Bucket Standard,
Optional 8” and 16”
Full Subframe Mount
Bucket Cylinder Digging Force 2,270 lbs.
Maximum Digging Depth 76”
(Two Foot Flat Bottom)
Optional Street Pads
Two Year Warranty

SUMMIT BHX76 BACKHOE SPECS

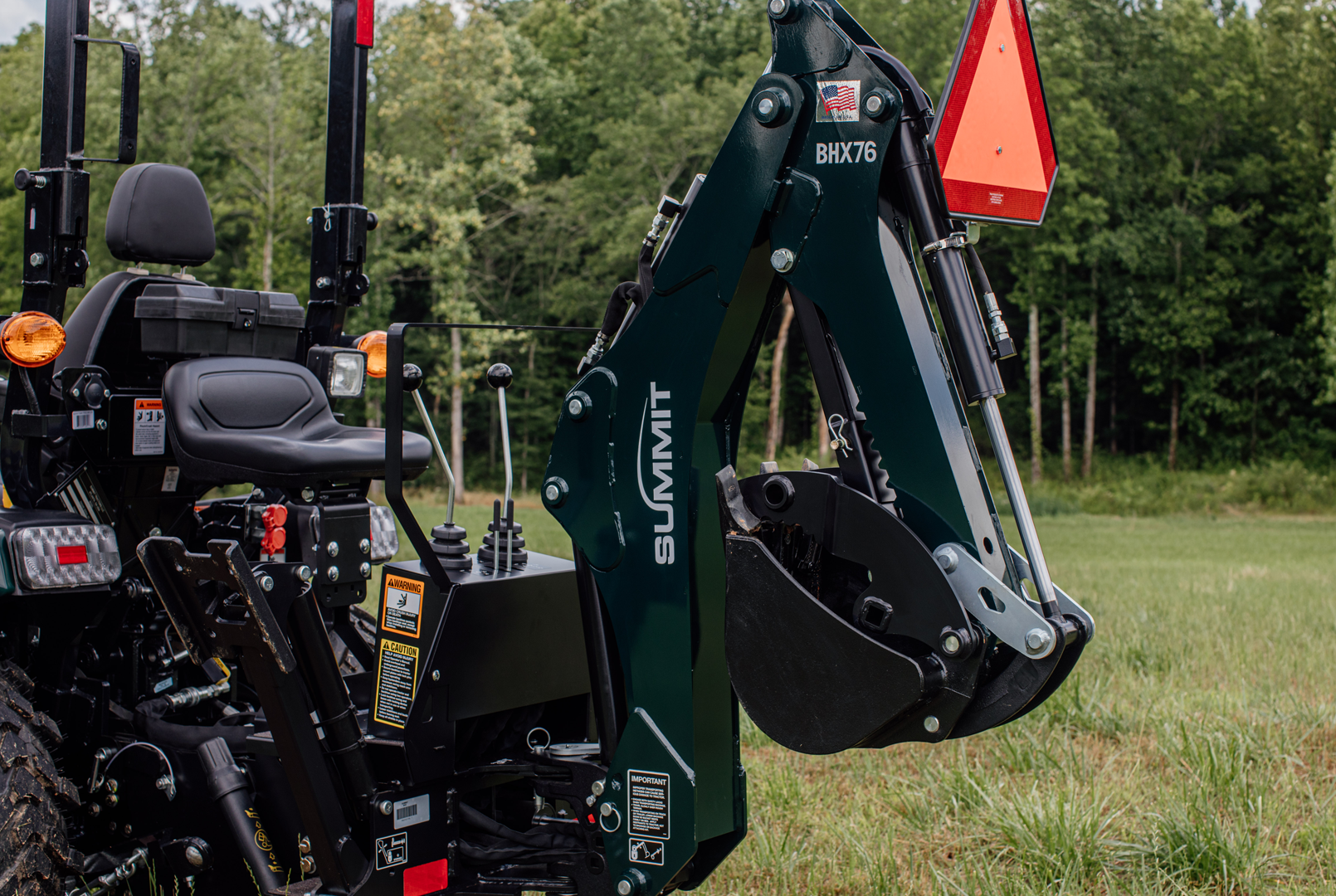

Model BHX76
Independent Operator Seat Standard
Mechanical Thumb Standard
Tractor Attachment Type Full Subframe Mount
Bucket Sizes 12" Standard, Optional 8", 16"
Street Pads Optional
Maximum Digging Depth 78"
Digging Depth (Two Foot Flat Bottom) 76"
Swing Arc 148 Degrees
Loading Height (Bucket at 60 Degrees) 64"
Reach From Center Line of Swing Point 109"
Transport Height (Maximum) 72"
Bucket Rotation 180 Degrees
Loading Reach (Bucket at 60 Degrees) 35"
Transport Overhang 37"
Undercut 15"
Stabilizer Spread, Down Position 74"
Stabilizer Spread, Up Position 59"
Bucket Cylinder Digging Force 2270 lbs.
Dipperstick Cylinder Digging Force 1248 lbs.
Hydraulic Volume Requirements 2 to 4 GPM
Hydraulic Pressure Requirements 2100 PSI
Backhoe Weight With Thumb and Bucket 790 lbs.
Overall Operating Height - Fully Raised 112"
